Product Details
Both NO and NC contacts incorporated in a compact DIP8-pin Reinforced insulation
Specifications
| Attribute | Attribute value |
|---|---|
| ANSM-Part# | ANSM-AQW610EH |
| Category | Relays |
| Solid State Relays | |
| Mfr | Panasonic Electric Works |
| Series | PhotoMOS? AQW |
| Package | Tube |
| Product Status | Active |
| Mounting Type | Through Hole |
| Circuit | SPST-NO + SPST-NC (1 Form A and B) |
| Output Type | AC, DC |
| Voltage - Input | 1.14VDC |
| Voltage - Load | 0 V ~ 350 V |
| Load Current | 120 mA |
| On-State Resistance (Max) | 25 Ohms |
| Termination Style | PC Pin |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Base Product Number | AQW610 |

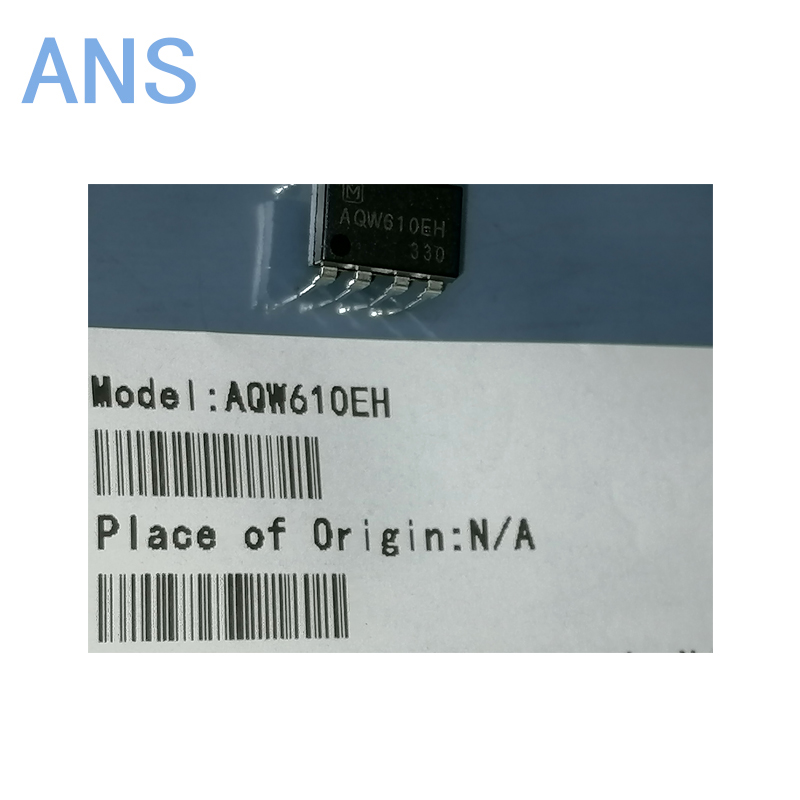

Actual product photos

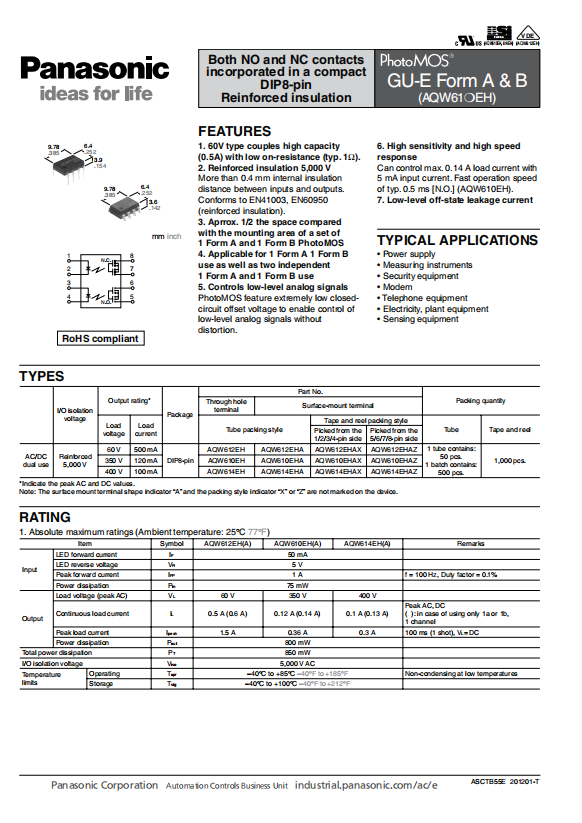

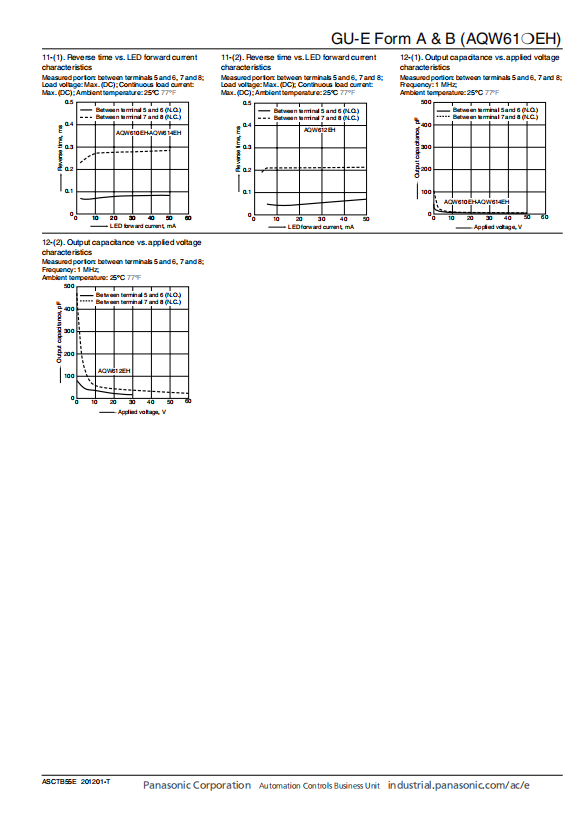

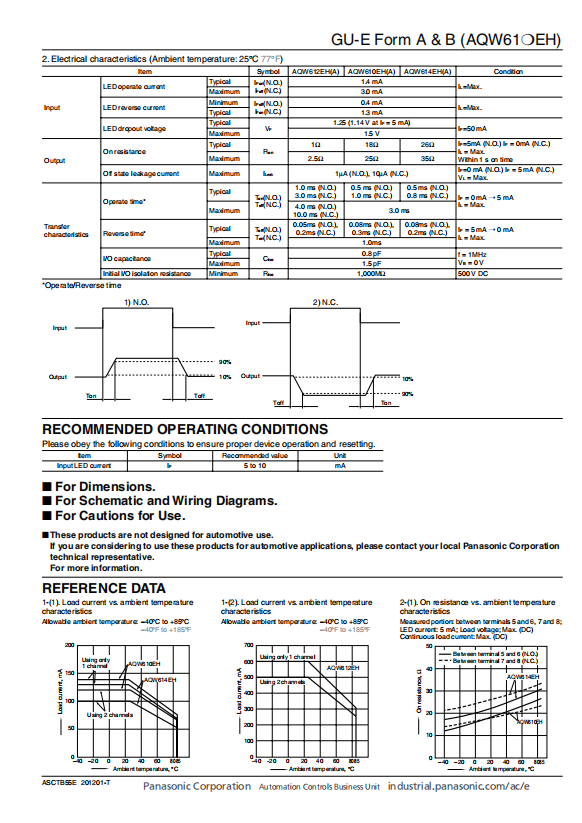

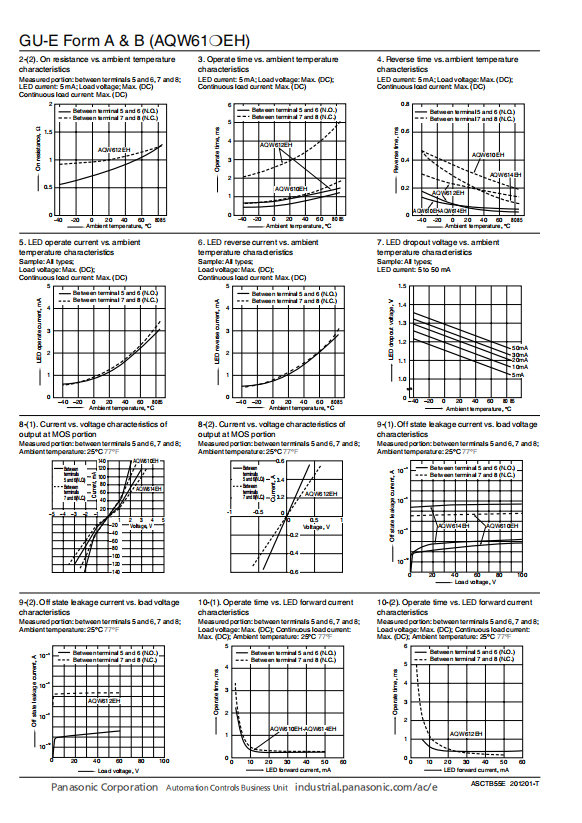

Product Data Book：
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
