Product Details
? Ultra-wide 4:1 input voltagerange
? High efficiency up to 90 pertent
? No-load power consumptionas lowas0.15W
? I/O isolation test voltage1.5k VDC
? Input under-voltage protection, outputshort-circuit, over-voltage, over-current protection
? Operating ambient temperaturerange: -40℃ to +85℃
? Meets CISPR32/EN55032 CLASS A, withoutextracomponents
? Six-sided metal shielding package
? Input reverse polarity protectionavailablewithchassis(A2S ) or Din-Rail mounting(A4S) version
? Meets EN50155 railway standard
Specifications
| Attribute | Attribute value |
| Model | URB4824LD-20WR3 |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Manufacturer | Mornsun America, LLC |
| Series | URB4824LD-20WR3 (20W) |
| Packaging | Tube |
| Part Status | Not For New Designs |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 834mA |
| Power (Watts) | 20 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 0.88 |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, UL |
| Standard Number | 60950-1 |
| Base Product Number | - |

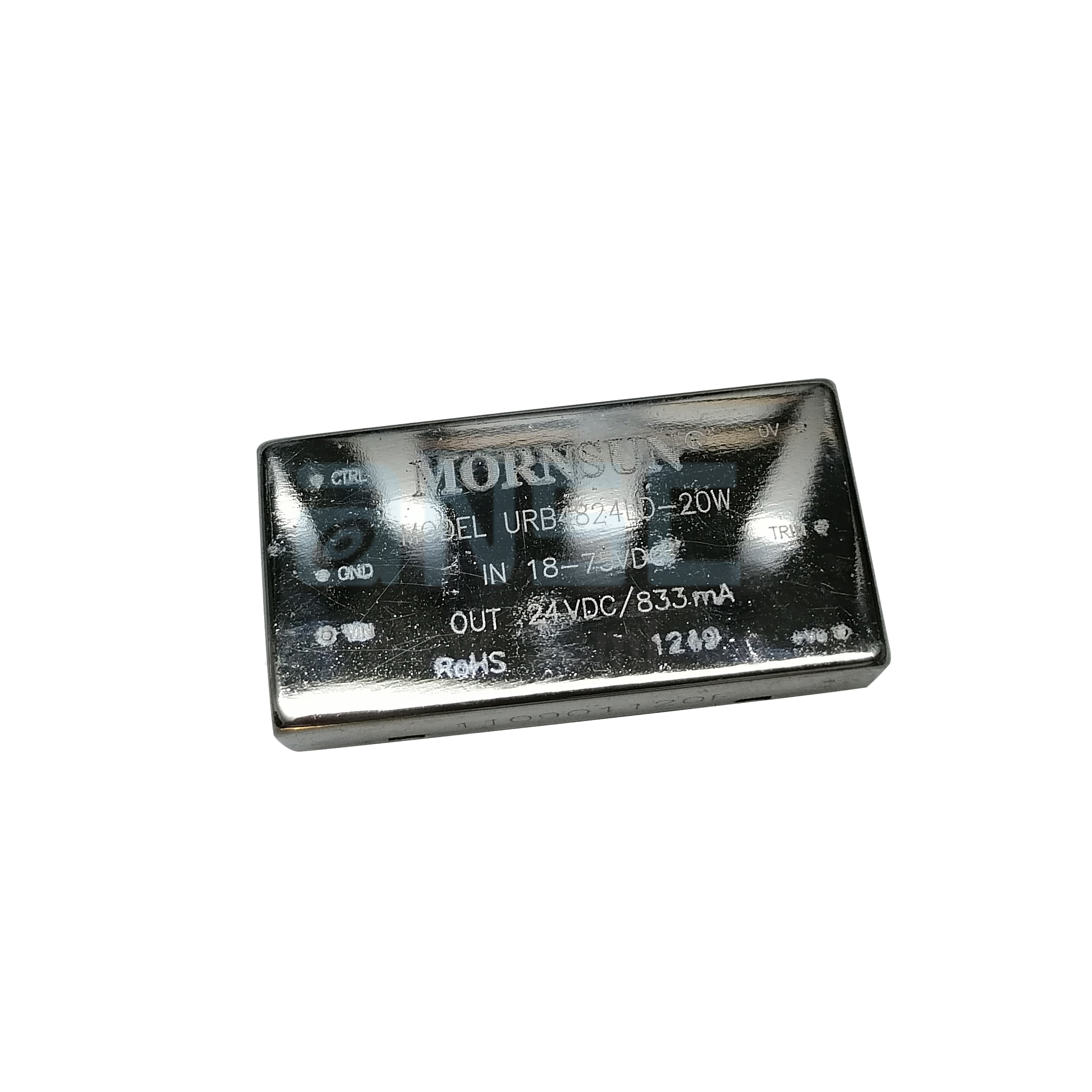

Actual product photos
