Product Description
AD1224HX-F51 DC 24V 0.32A 120*120*38 12038 High Speed Cooling Fan
Details:
Model: AD1224HX-F51 Size: 120 * 120 * 38mm Voltage: 24V Current: 0.32A Power: 7.68w Speed: 2600RPM ± 10% Airflow: 114.7CFM Space exhaust volume: 3.25m3/min Wind pressure: 0.41In-H2O Noise: 41db Function: Two line blockage protection Bearing: High precision maintenance free double ball bearings Service life: 40000 hours Operating temperature: -15 ℃ -65 ℃
ANSC Details:
1.AC brushless blower 200V/ 220V/ 230V/ 240V and DC brushless blower 12/24/48v available.
2.FG,RD,TC,PWM function can be customized as customers requirement.
3.OEM&ODM service acceptable.
If you can not find the suitable fan model in the fan list,Please feel free to contact Zoey Zhan for customized fans.
To customize fan, you should consider the points below
Fan size(mm):
Fan speed (rpm):
Fan airflow(cfm):
Fan noise level(dBA):
Fan start voltage(v):
Fan current(A):

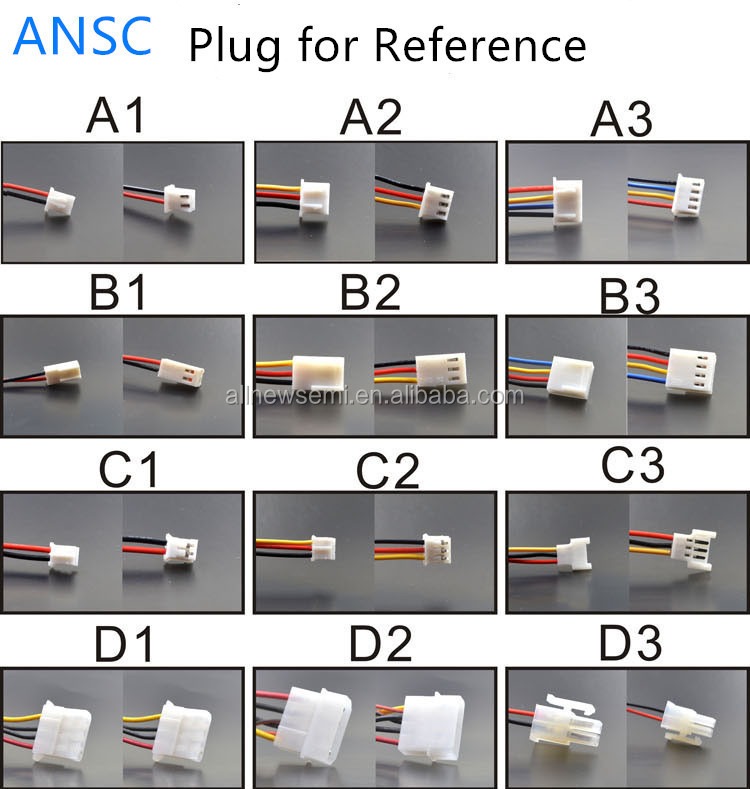

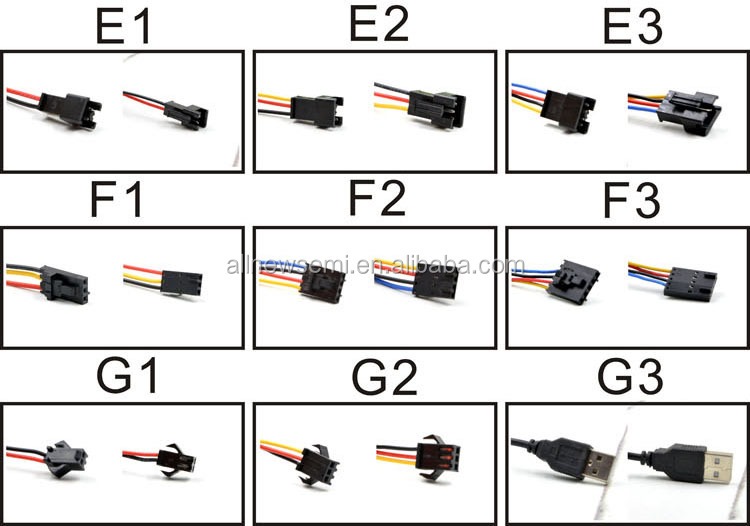

Fan connector:
And Such as: moisture roof, water proof, turbocharger, soft start, Reversible, temperature control, PWM speed control, the RD alarm and the FG signal etc.
IP 55/IP 67/IP 68/IP 69: Protection of motor and PCB board against splashed water and humidity.
Speed signal: The fan uses a separate wire to output information about its speed, and thus about the speed of the rotor.
PWM control input: The speed of the fan can be changed via a pulse-widthmodulated signal. This signal is applied to a specially provided wire.
Company Profile
ANSC is a global provide of one-stop service of electronic components for over 10 years : fan ,module ,integrated circuit, transistor, diode,PCB ,etc.....
As a professional distributor,our company focus on a series of high quality accessories, a wide range of diversity, reasonable price and on-time delivery,win-win cooperations!
Some of types you want maybe can't find out in our catalogue, that because they are not put on the shelves yet. Please feel free to consult our customer service.
