Product Features
Rated Voltage : 12V
Operating Voltage Range : 4 ~ 13.4 V
Input Current : 1.60 Amp
Input Power : 19.20 Watt
Maximum Air Pressure : 15.29 mm H2O
This Delta AFC1212DE 120x38mm fan is special made for Dell computers, it is compatible with Dell P/N: D8794 ,Y4574, H7058, D6168, D8794,CH9743, G9096
Dell Dimension: 3100 5100 5150 E310 E510 E520 E521 9100, 9150, 9200, XPS 400, XPS 410
Dell Precision: 380, 390
Dell PowerEdge: SC440, SC430 830
Dell Precision Workstation: 690, 380, 390
Dell Optiplex Systems: GX280-05 210L, GX320, GX520 MT, GX620 MT, GX740, GX745, GX745c

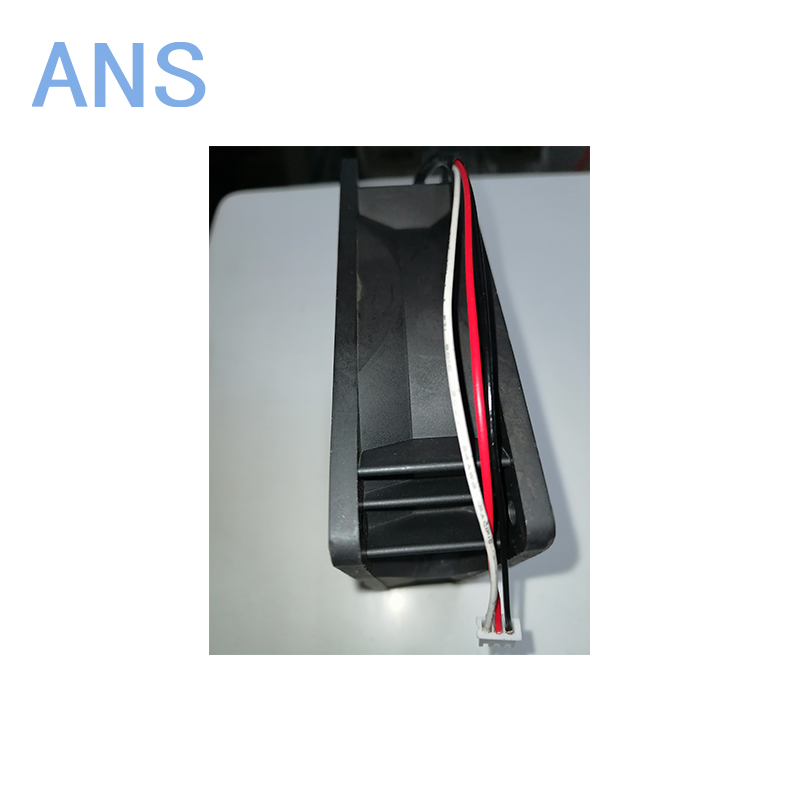

It comes with 4 wire lead (white=TAC sensor, red=power, black=gnd, blue=PWM control) to 5 pin Dell connector
PWM fans provide additional airflow by using Pulse Width Modulation (PWM) to automatically adjust fan speed according to the CPU load. The fan can be idled down and thus be much quieter. The PWM chip in the motor allows an exact fan speed control via BIOS.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AFC1212DE |
| Fan Size | 120mm |
| Bearing Type | Ball Bearings |
| RPM | 3900 RPM |
| Air Flow | 148.34 CFM |
| Noise Level | 51 dBA |
| Color | Black |
| Dimensions | 120 x 120 x 38mm |

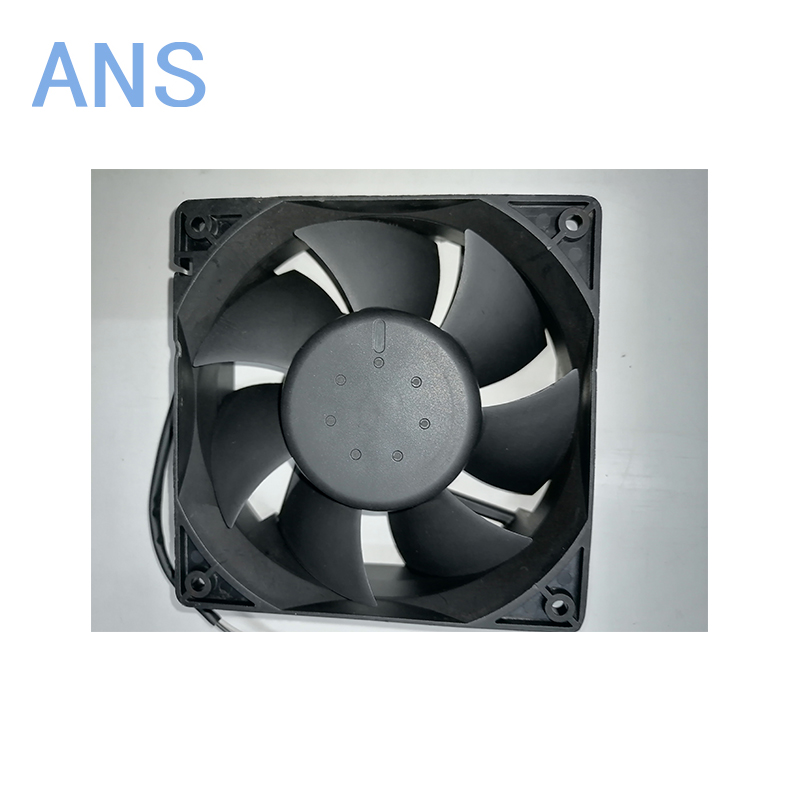

Actual product photos
